ES101SR

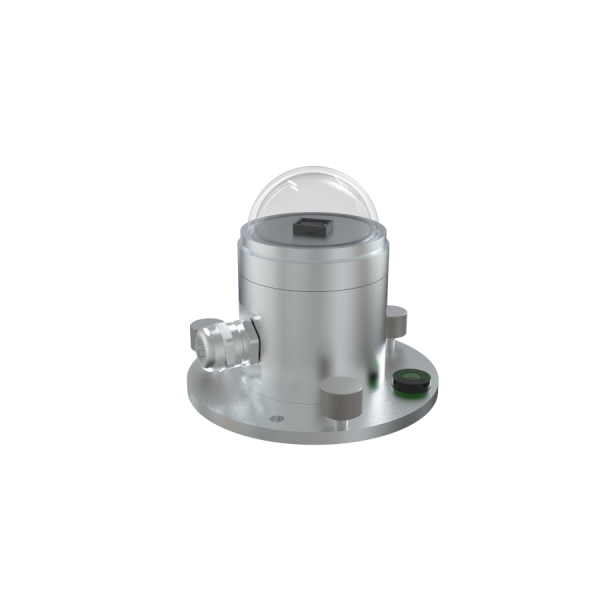

  1.  Outdoor Solar Radiation Sensor

The ES101-SR measures solar radiation with a spectral range of 0.3 to 3 μm by photoelectric characteristics. The high-precision photosensor inside the sensor can absorb a wide spectrum of radiation in the entire spectrum range with good stability. The transparent dust cover provides up to 95% of light transmittance, and the special surface material can prevent dust.
Related Downloads Inquiry cart
The ES101-SR measures solar radiation with a spectral range of 0.3 to 3 μm by photoelectric characteristics. The high-precision photosensor inside the sensor can absorb a wide spectrum of radiation in the entire spectrum range with good stability.

The transparent dust cover provides up to 95% of light transmittance, and the special surface material can prevent dust.

Optional IoT Router and Cloud Platform - ThingsMaster
  • Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
  • Real-time online monitoring, analysis, reporting
  • Remote cloud security and visual management
Power Input 10V~30V DC
Output RS485 Modbus
Power Consumption 0.08W
Operation Humidity 0%~100%RH
Operation Temperature -40℃~60℃
Spectrum Measurement 0.3~3μm
Measurement Range 0~1800W/㎡
Accuracy 1W/㎡
Response Time ≤10S
Stability ≤±2%
Cable 60cm
